Digital Signal Processor - Technical Refresh

Signal Processor Tech Refresh SLEP Familiarization Video

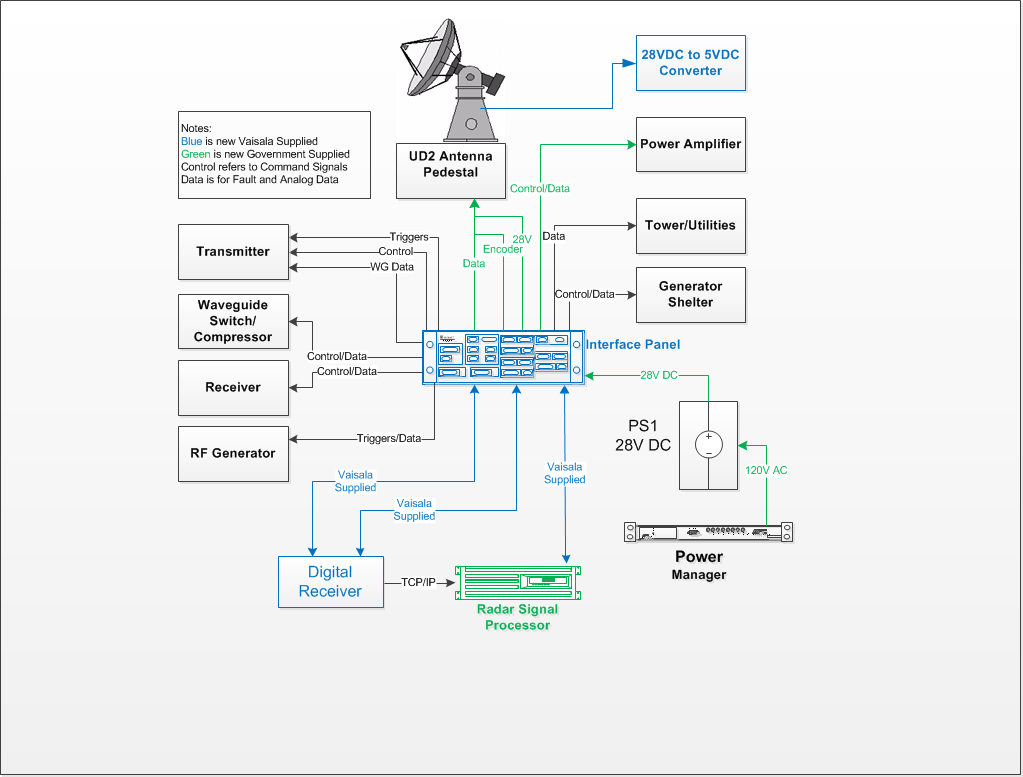

Current Signal Processor Architecture Click image to enlarge		New Signal Processor Architecture Click image to enlarge

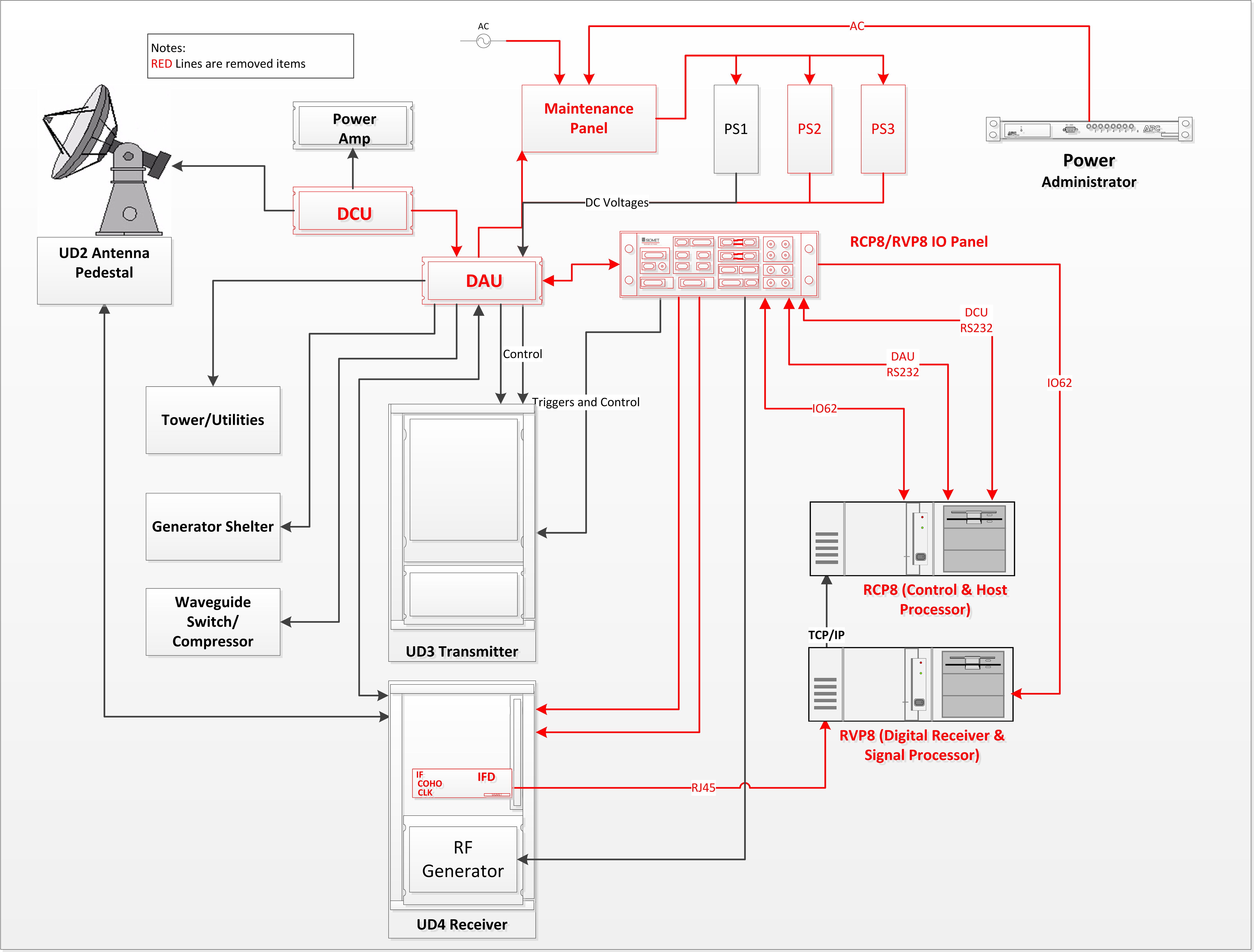

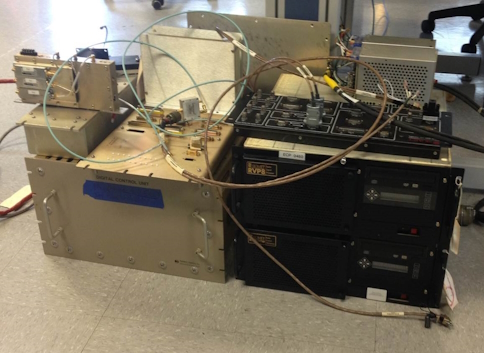

Hardware Removed

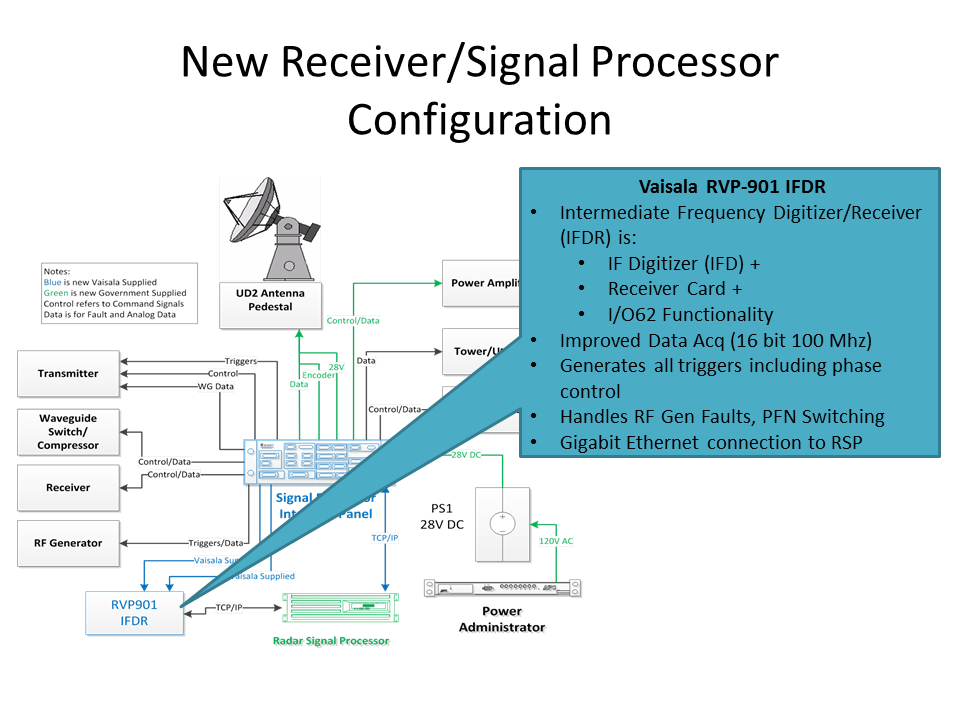

RVP-901 IF Digitizer/Receiver
Click image to enlarge

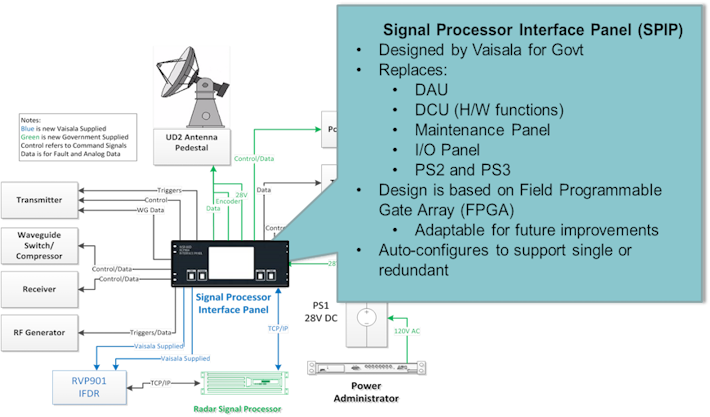

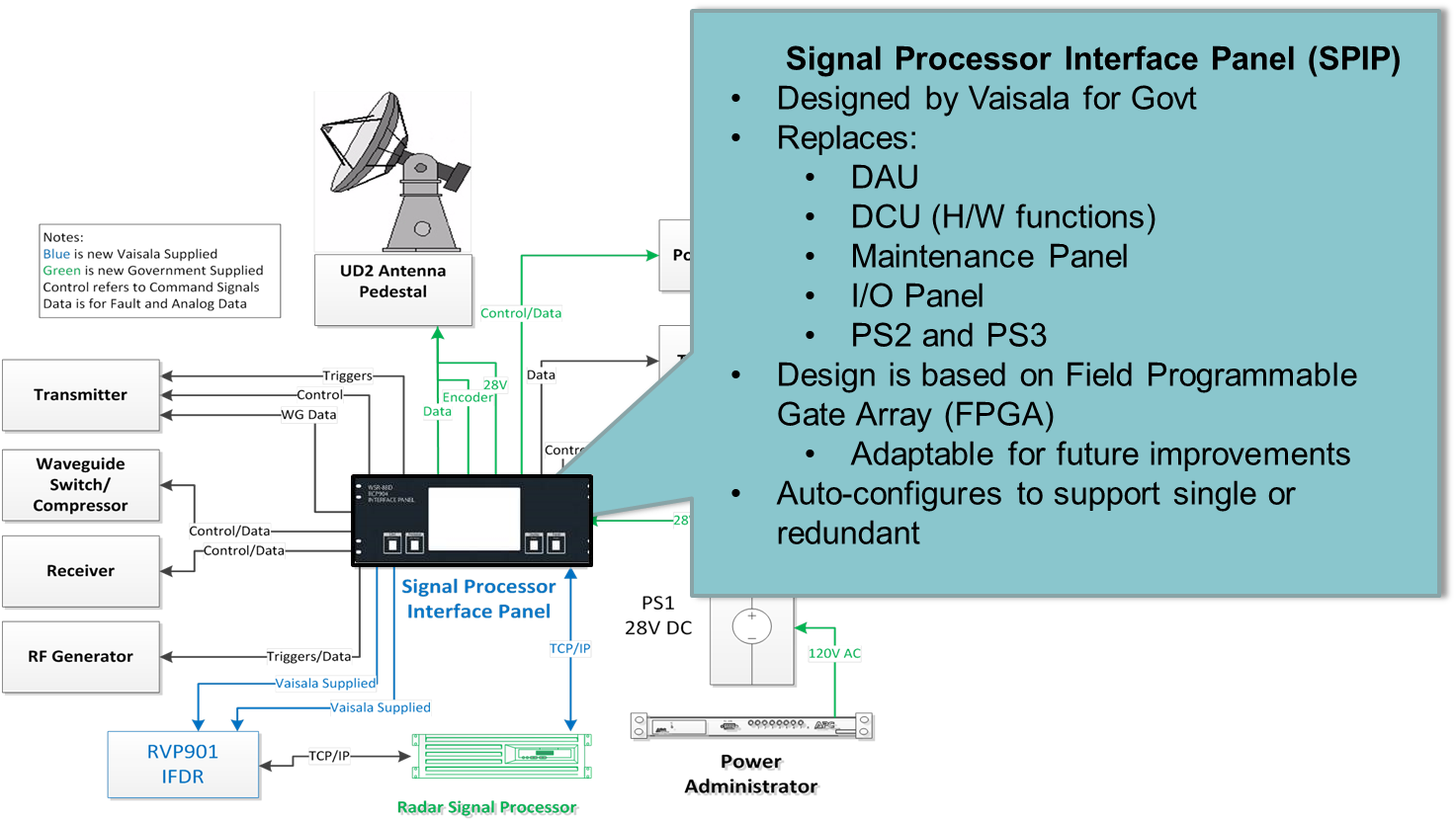

Signal Processor Interface Panel
Click image to enlarge

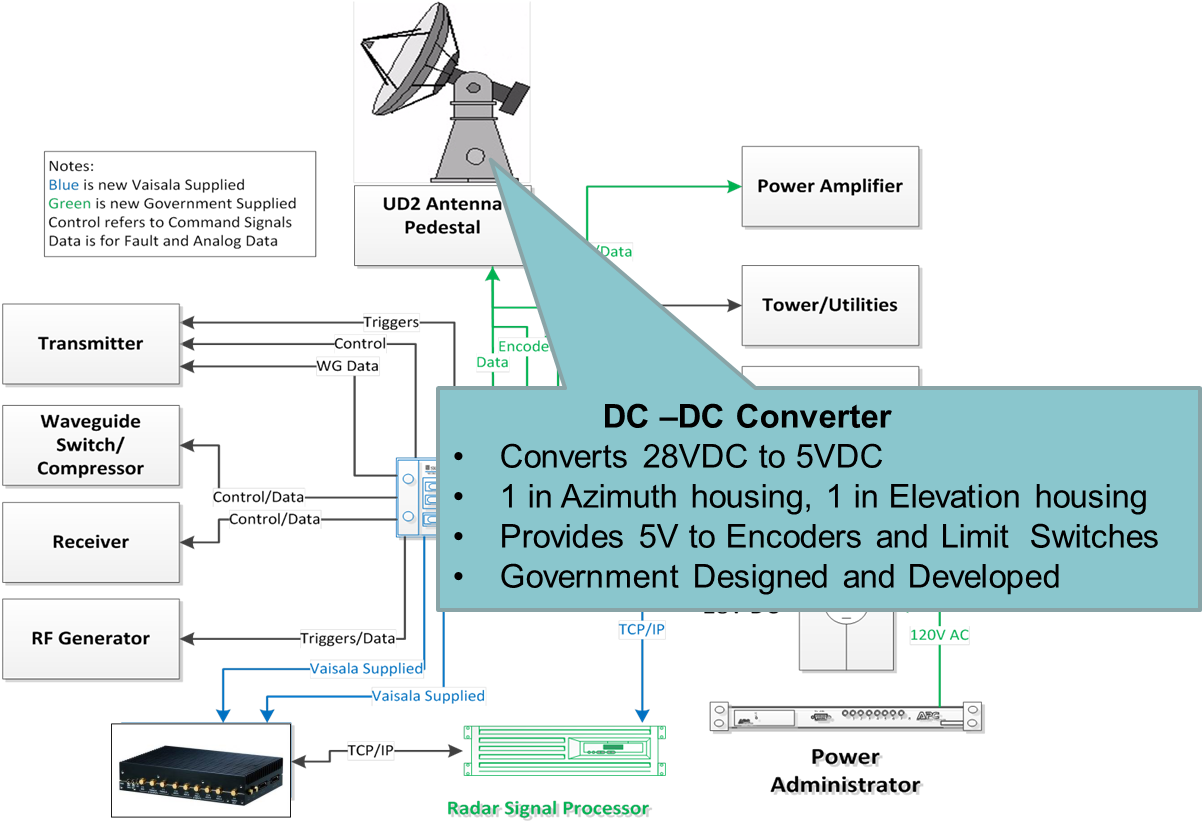

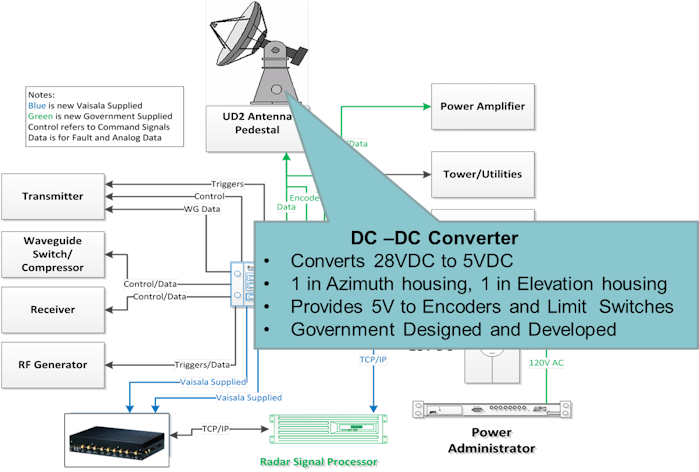

DC-DC Converter
Click image to enlarge

Signal Processor Tech Refresh

Development Effort
• WSR-88D Interface Panel
  • Required to integrate IFDR into radar
  • Required to perform DAU, Maintenance Panel, I/O Panel and other functions
• Develop software to test pedestal performance
• Develop software to optimize pedestal controller S/W
• Modifications to other software routines to accomodate new architecture
• Software changes incorporated into RDA Build 17 software

Deployment Strategy
• Kit installed by ROC On-Site with Field Site El Tech Assistance
• 3 day Installation and Check-Out (INCO) with overnight field test
• Removed equipment disposed of locally
